PRODUCT LINE

 ENERGY EFFICIENT FILTRATION

“D” Pressure Elements Model Code
“R” Return Elements Model Code

BETAMICRON® SERIES - HIGH PRESSURE AND RETURN FILTER ELEMENTS

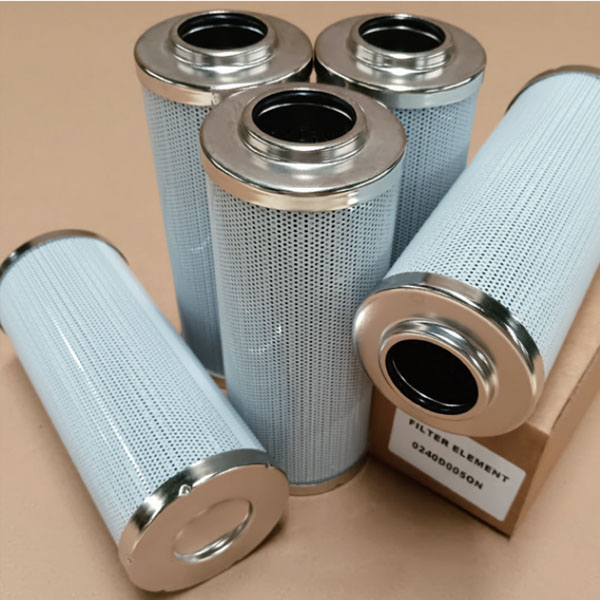

“D / DN” Pressure Elements Model Code

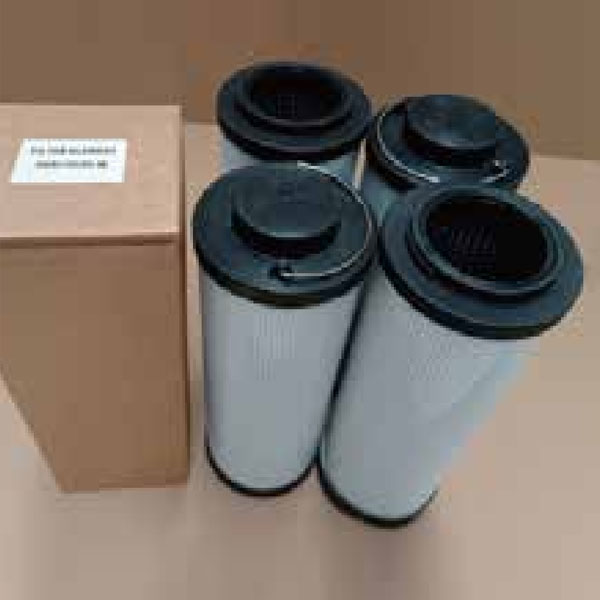

“R / RN” Return Elements Model Code

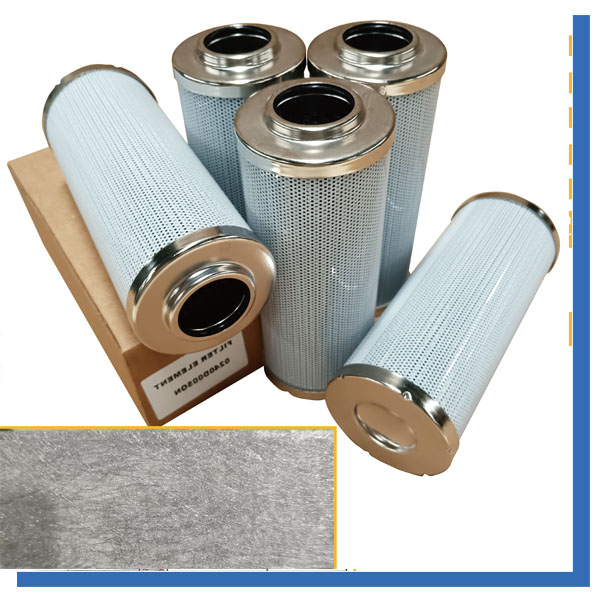

REPLACE HYDAC FILTER ELEMENTS - TYPE D FOR PRESSURE FILTERS

Application

Type "D" pressure line elements are used in the filters series DF, DFF, DFG, DFP, DFZ, DFDK, LF, MDF










DIFFERENTIAL PRESSURE ACROSS FILTERS

HYDAC FILTER ELEMENTS - TYPE R FOR RETURN LINE FILTERS

Application

"R" type elements are used in return line filters, e.g. in the series

RF, RFD, RFM, RFL, RFLD, RFM, NF, NFD.


SINFT IS CONSTANTLY OPTIMIZING OUR ALTERNATIVES, INCLUDING THE LATEST DESIGNS

SINFT REPLACEMENT HYDAC RFSERIES - CONICAL FILTER ELEMENTS:

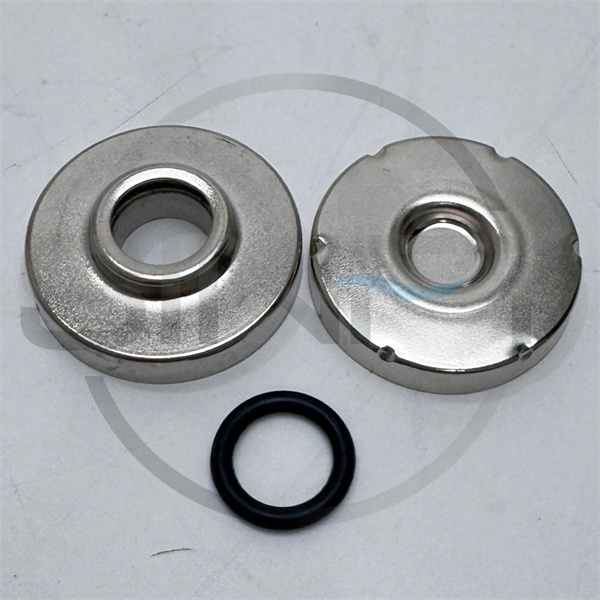

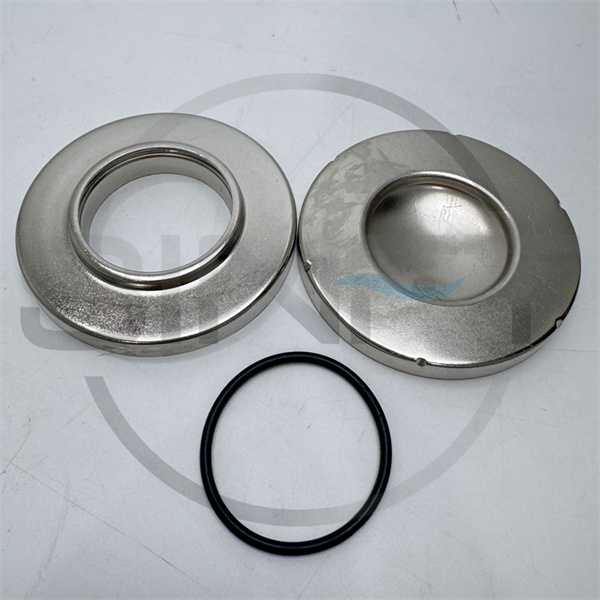

“D” PRESSURE ELEMENTS

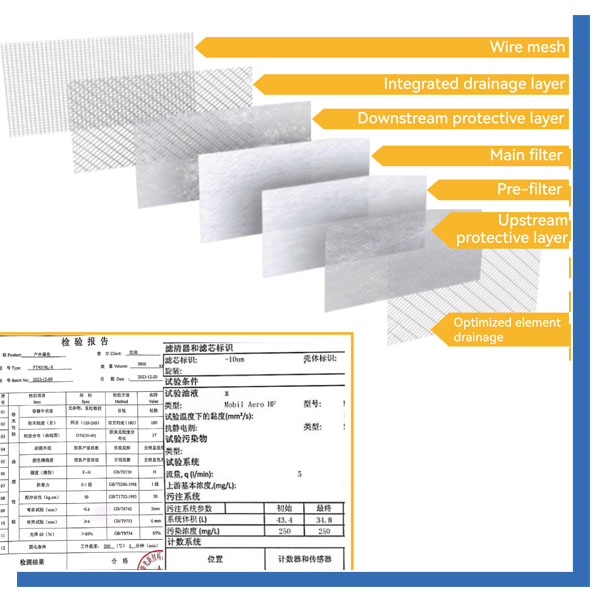

PRODUCT STRUCTURE                                                                                     PRODUCT PHOTO



TECHNICAL SPECIFICATIONS

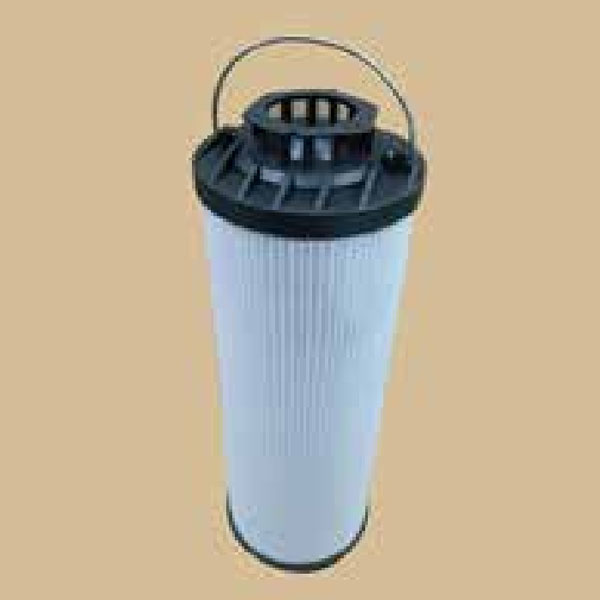

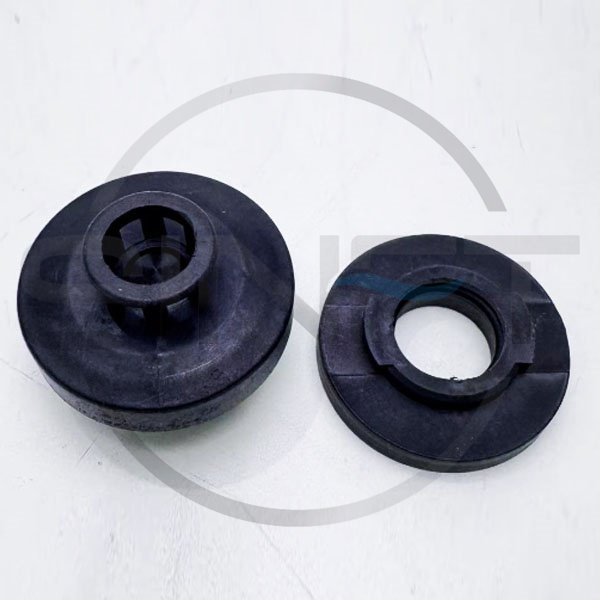

“R” RETURN ELEMENTS

· High contamination retention
· High level of particle removal over a wide differential pressure range
· High resistance to fluctuations in pressure and flow rate





PRODUCT STRUCTURE




“R / RN” RETURN ELEMENTS

PRODUCT STRUCTURE



TECHNICAL SPECIFICATIONS

SINFT Replacement HYDAC Breather

1. Working temperature: -30℃~+110℃;
2. Filtration precision: 3μm;
3.Sealing material: NBR:
4. Installation form: thread; 1NPSM (thread can be customized as required);




1、 3 specifications 100mm diameter, medium 130mm diameter 2、 Configure a pressure check valve with an opening pressure of 0.01bar in the opposite direction. 3、 Can be filled with desiccant (non-toxic ZR colloidal particles) or desiccant activated carbon mixture 4、 Replace air filter SGB 5、 Connection: external thread (ISO228)
