SINFT® High Pressure Filter Elements
Up to 6500 psi / 448 bar
SINFT provides high pressure filter cross-reference products that can be applied and installed between pumps and critical hydraulic components such as cylinders, motors, and valves — protecting these critical components from catastrophic failure.
Our high pressure filter program covers a full range of pressure ratings from 2000 psi to 6500 psi, suitable for the most demanding hydraulic circuits in industrial, mobile, and mobile equipment applications.
- Max working pressure up to 6500 psi / 448 bar
- Positioned between pump and critical hydraulic components
- Protects cylinders, motors, and valves from catastrophic failure
- High collapse options up to 3000 psi differential pressure
- Full range: HF2 / HF3 / HF4 automotive specifications
- ISO 16889 multi-pass tested — β₅(c)=1000 efficiency
Pressure Ratings & Performance Overview
SINFT high pressure filters cover the full spectrum from 2000 psi to 6500 psi working pressure, with a wide range of flow rates to match any hydraulic system requirement.
HPK02 Series
20 gpm / 76 lpm · HF2 spec · Cast aluminum head
W440 Series
20 gpm / 76 lpm · HF2 spec · Manifold mountable
FPK02 Series
25 gpm / 95 lpm · HF2 spec · Forged steel construction
HPK04 Series
120 gpm / 454 lpm · HF3 spec · Ductile iron head
High collapse filter elements are rated up to 3000 psi / 207 bar differential pressure before collapsing — designed specifically for non-bypass servo valve and proportional valve applications where zero bypass leakage is critical.
Filter Media & Materials
SINFT high pressure filters use three primary filter media types to meet different application requirements — from standard hydraulic circuits to high-water-content fluids.
Synthetic Glass Fiber
All DT filter elements use glass fiber media with an acrylic-based resin system — providing the ultimate in chemical compatibility for hydraulic filtration.
- Best-in-class chemical compatibility
- Double wire-backed (acrylic-coated steel mesh)
- Maximum pleat support & dirt capacity
- Potted with acrylic-based adhesives
- Available in standard & high collapse designs
Water Absorbing Media
Special water-absorbing filter media captures free water from hydraulic fluid, protecting sensitive components from corrosion and hydraulic oil degradation caused by water contamination.
- 9600 series @ 25 psid absorbs 130~300 ml water
- Protects against water-induced corrosion
- Extends hydraulic component service life
- Applied in W350, HPK03, FPK04, HPK04, W451
Wire Mesh Media
Stainless steel wire mesh provides robust coarse filtration for pre-filtration stages, protecting finer filter elements from large particle contamination and extending overall system life.
- Precision rating: 75 μm
- Stainless steel wire construction
- Washable and reusable
- Ideal as pre-filter or strainer stage
Filtration Accuracy — ISO 16889 Standards
All SINFT high pressure filters are tested to ISO 16889 multi-pass standards. The β₅(c)=1000 rating means 99.9% of particles at the stated micron size are captured on a single pass through the filter.
| Grade Code | Absolute Accuracy | β Ratio @ ISO 16889 | Typical Application | Equivalent SAE Rating |
|---|---|---|---|---|
| <4 µm | <4 µm | β₄(c) = 1000 | Servo valve & proportional valve circuits — ultra-precision | SAE - |
| 5 µm | 5 µm | β₅(c) = 1000 | General hydraulic circuits — standard protection | SAE ~3 |
| 8 µm | 8 µm | β₅(c) = 1000 | Medium-precision hydraulic systems | SAE ~5 |
| 12 µm | 12 µm | β₅(c) = 1000 | Standard hydraulic filtration | SAE ~7 |
| 23 µm | 23 µm | β₅(c) = 1000 | Coarse pre-filtration stage | SAE ~9 |
| 75 µm | 75 µm | Wire mesh | Strainer / pre-filter / return line | SAE ~16 |
Seal Materials & Fluid Compatibility
SINFT high pressure filters offer two seal material options to cover the full range of hydraulic fluids from standard petroleum-based oils to aggressive phosphate ester and water-glycol fluids.
Fluorocarbon (Viton®) — Standard
Standard on all DT filter elements. Fluorocarbon seals provide outstanding resistance to heat, oil, and chemical attack. Required for:
- Phosphate ester fluids (Skydrol, HyJet, etc.)
- Diesters and synthetic ester oils
- Water-glycol fluids (HWCF) above 150°F / 83°C
- Water/oil emulsions above 150°F / 83°C
Nitrile (NBR) — Standard on W-Series
Standard seal material for W-series filters. Suitable for petroleum-based hydraulic and lubricating oils at normal operating temperatures.
Warning: When filtering phosphate ester, diester, water-glycol, water/oil emulsions, or HWCF fluids at temperatures exceeding 150°F / 83°C — Fluorocarbon (Viton®) seals are mandatory. Failure to use correct seals will result in rapid seal degradation and potential system contamination.
Quality Control & Testing Standards
Every SINFT high pressure filter element undergoes rigorous multi-point quality inspection and performance testing before shipment — ensuring reliable protection for your critical hydraulic components.
ISO 16889 Multi-Pass Testing
All filter elements tested to ISO 16889 multi-pass (MP) standards — the most rigorous and reproducible method for verifying filter efficiency and β-ratios.
Static Burst Pressure Test
Every filter assembly is pressure-tested to verify structural integrity at extreme overpressure conditions. HPK04 reaches 17,000 psi / 1173 bar rated static burst.
Fatigue Pressure Rating
W350, W451, and W620 series filters are designed with fatigue pressure ratings for mobile equipment applications with cyclic pressure loading.
All SINFT filter elements are 100% performance tested before shipment. Bypass valves undergo surface carburizing treatment at critical contact points for extended durability. Filter batch numbers are fully traceable for quality assurance.
Applications & Industries
High Pressure Circuits
Between pump and critical components in high-pressure hydraulic systems
In-Plant Systems
Factory hydraulic power units and industrial machine tools
Mobile Equipment
Construction, agriculture, and material handling machinery
Servo Valve Circuits
Precision servo and proportional valve protection circuits
Hydrostatic Transmission
Hydrostatic drive systems in mobile and industrial equipment
Power Steering
Heavy-duty power steering circuits in mobile equipment
Lube Oil Systems
Lubricating oil filtration for machinery and equipment protection
Process Fluids
Industrial process fluid filtration and purification systems
Inventory & Other Advantages
SINFT maintains large inventory stocks and comprehensive production capabilities to serve customers worldwide.
Advanced Inventory Management System
SINFT maintains a sophisticated inventory management system with dedicated personnel and advanced software, ensuring large stock of inventory items to serve ODM/OEM customers efficiently.
- 2,100 m² storage space: 1 finished goods warehouse and 2 raw material warehouses
- Proprietary warehousing software for organized filter material management
- Automatic alerts for low raw material levels, prompting immediate restocking
Strict Pre-Shipment Quality Inspection
We strive to ensure timely delivery with rigorous quality checks before shipment, guaranteeing product reliability and customer satisfaction.
- 100% pre-shipment inspection
- Testing to international standards (ASTM, ISO)
- Complete inspection reports with each shipment
Comprehensive Packaging Solutions
- Standard Filter Packaging: Plastic bag + cardboard box + wooden crate
- Customized outer packaging with leg heights compliant with European forklift standards
- Customized packaging for special filters and OEM clients
- Innovative packaging design to prevent transport damage
- Laser marking on products and color-printed cardboard packaging

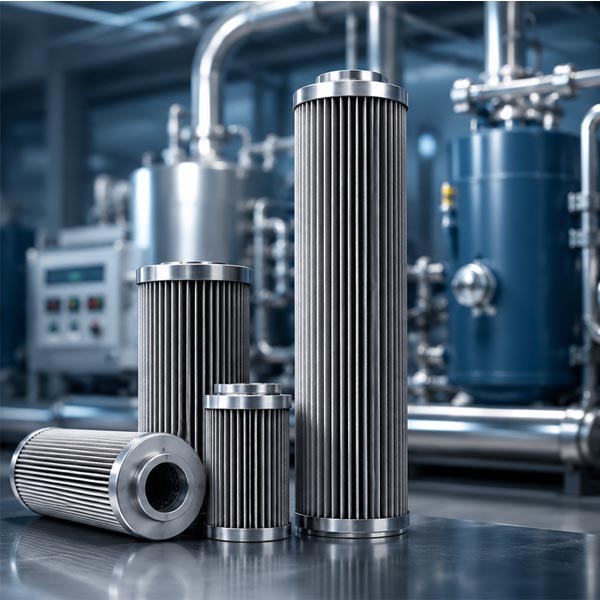

Your Advantages with SINFT
- Over 10 years, established relationships with more than 80 suppliers
- Over 300 different filter media for various applications
- 3D printing and drawing design capabilities
- All production personnel receive regular training
- Core production staff hold vocational technician certificates
Centralized Shipping & Streamlined Process
SINFT ensures efficient and accurate logistics through a centralized warehousing system. Every order undergoes scanning, packaging, and labeling at our unified distribution center, guaranteeing fast and precise delivery.

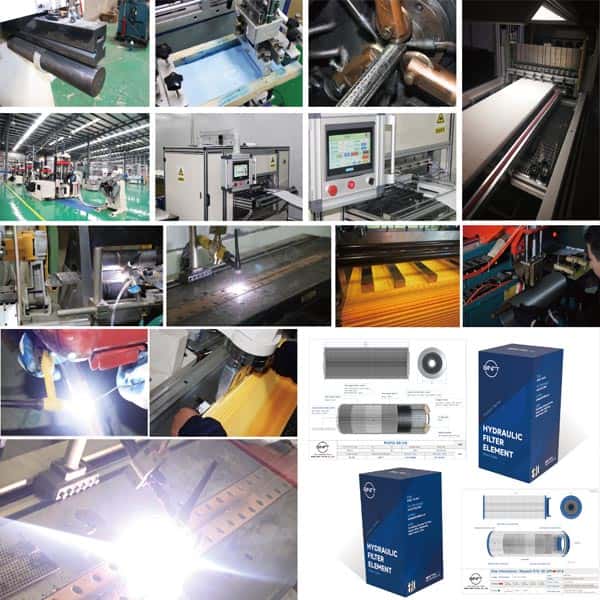

Custom Filter Solutions
From prototype to mass production, SINFT provides end-to-end filtration solutions tailored to your specific requirements. Our engineering team works closely with customers to develop custom high pressure filters for unique applications.
SINFT® designs, manufactures and markets a complete line of Filter and Strainer Replacement Elements which are functionally and dimensionally interchangeable with industrial OEM filter manufacturer elements.
