Special Filter Elements — Coalescing Filters & Gas Coalescers

SINFT special filter elements are designed for higher levels of separation compared to other purification and filtration systems. These filter elements separate immiscible liquids (liquid-liquid coalescing) or liquids from gas streams (liquid-gas coalescing), ensuring the removal of 99.99% of solid particles — keeping fuels and liquids free of particle contamination and free water.

SINFT offers Pall, Hilco, Kaydon, Parker, and PECO replacement coalescing filters, featuring unique filter material cartridges and a special design that allows increased load with fewer circulating cartridges in your system.

Liquid-liquid coalescing: water and oil separation from fuels and lubricants
Liquid-gas coalescing: removal of oil mist and water aerosols from gas streams
99.99% solid particle removal efficiency
Pall / Hilco / Kaydon / Parker / PECO cross-reference replacements
Compressed air, CNG, refrigeration, and industrial gas applications

Cross Reference Tool Contact Us

Disclaimer: SINFT is an independent industrial filter manufacturer, not a distributor or authorized agent of Pall, Hilco, Kaydon, Parker, or PECO. All brand names are used for cross-reference identification purposes only.

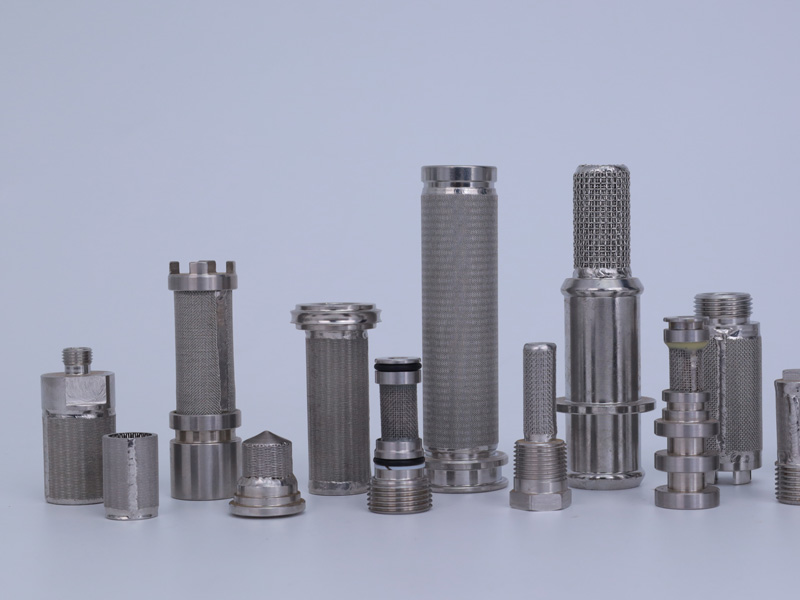

Special Filter Elements — SINFT Replacement Coalescing Filters

Special Filter Elements — Coalescing & Gas Coalescers

This Must Be What You Care About Most

We deeply understand your concerns: poor coalescing separation, water in fuel, oil mist carryover, short filter life, high maintenance costs. SINFT addresses all of them.

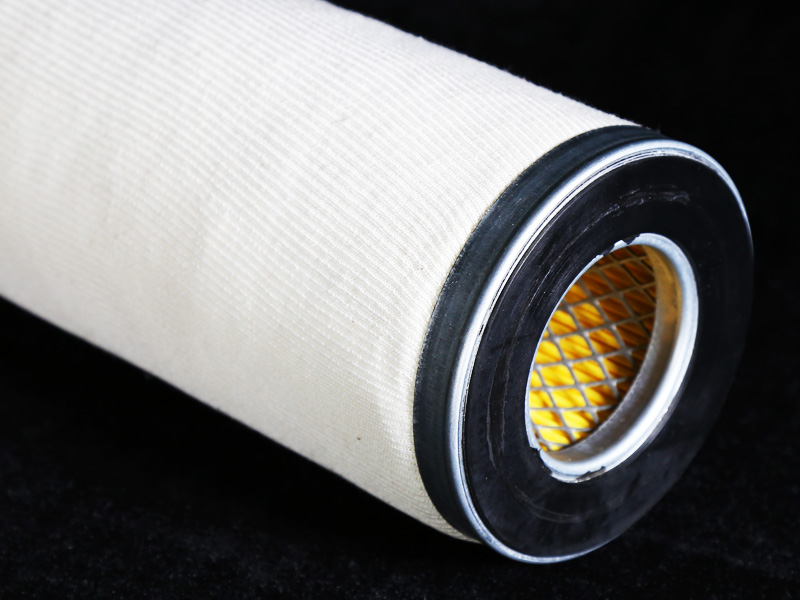

Oil & Gas Coalescers — SepraSol Plus Media

SINFT coalescing filters use SepraSol Plus media — proven to process several times more liquid per unit area than conventional media. This advanced coalescing technology often eliminates the need for upstream bulk separation equipment such as mist eliminators and vane separators.

These coalescers change the way gas streams are conditioned — keeping fuels and lubricants in optimal condition, preventing oxidation and viscosity breakdown in lubricating oils.

SepraSol Plus: several times more liquid per unit area vs. conventional media
Eliminates upstream mist eliminators and vane separators
Water removal: below 100 PPM total water
Outlet cleanliness: 16/14/11 (ISO 4406)

SepraSol Plus Oil & Gas Turbo-TOC Water <100 PPM

Oil Mist Eliminators — Demister Cartridge Technology

Oil Mist Eliminators — Demister Cartridges

Demister Cartridges utilize an inside-out flow configuration to trap oil from the air stream and return it to the oil reservoir for reuse. The resulting clear air can be safely released into the atmosphere with no environmental impact whatsoever.

Coalescing filter elements are also used to separate immiscible liquids such as water from fuels and oils with different densities — providing dry, particulate-free jet fuels, diesel fuel, turbine fuel, lube oil or insulating oil.

99.97% total emissions efficiency
Carryover: less than or equal to 5 PPM
Liquid loading: 5,000 mg/m³
Media: Fiberglass, Polypropylene & Cotton
Seal: Viton O-Ring standard

99.97% Efficiency Demister Inside-Out Flow Viton Seal

Technical Specifications

Nominal Cartridge Dimensions

Part Number	S604LGH13 (single open end) CS604LGBH13* (single open end) CS604LGDH13 (double open end) CS604LGBDH13* (double open end)
Outer Diameter	152.4 mm (6″)
Length	1016 mm (40″)
Surface Area	2.6 m² (28 ft²)

*B = Borosilicate glass fiber media | D = Double open end configuration

Performance Specifications

Solid Removal Rating*	99.7% @ ≥ 0.3 µm (sodium chloride challenge test)
Liquid Removal (LASE)**	0.1 PPM downstream (single open end)
Liquid Removal (CAGI)***	1 PPB downstream (double open end)
DOP Efficiency	99.999% efficient at 0.3 micron (double open end)
Temperature Rating	82°C (180°F) dry / 65°C (150°F) with water
O-Ring Seal	Viton (standard)

* Per sodium chloride challenge test | ** Per Pall LASE Test | *** Per ANSI/CAGI-400-1999

Oil Mist Eliminator — Demister Cartridge Specifications

Efficiency	99.97% Total Emissions	Carryover	≤ 5 PPM
Liquid Loading	5,000 mg/m³	Coalescer Media	Fiberglass, Polypropylene & Cotton
Disposal	Normal Oil Filter	Adhesive	Urethane
O-Ring Seal	Viton	Part Numbers	DM820-00-C (50 CFM) / DM830-00-C (75 CFM) / DM839-00-C (100 CFM)

PECO Saturated Depth Gas Coalescer Cartridges

PECO gas coalescer cartridges work on a principal referred to as Saturated Depth Coalescing. This allows liquid droplets to collect and saturate the pores within the media depth, then grow to their fullest potential. The droplets then drain with gravity when they reach a certain size.

These liquid droplets often take with them solid contaminant particles as well — causing a "self-cleaning" effect within the depth media matrix. This means PECO coalescers maintain performance over longer service intervals compared to surface-type filters.

Saturated Depth Coalescing principle — droplets grow within media depth
Self-cleaning effect: solid particles carried away with liquid droplets
Longer service intervals vs. surface-type filters
For compressed air, natural gas, and industrial process gas streams
Available in multiple lengths and end cap configurations

Cross Reference Get a Quote

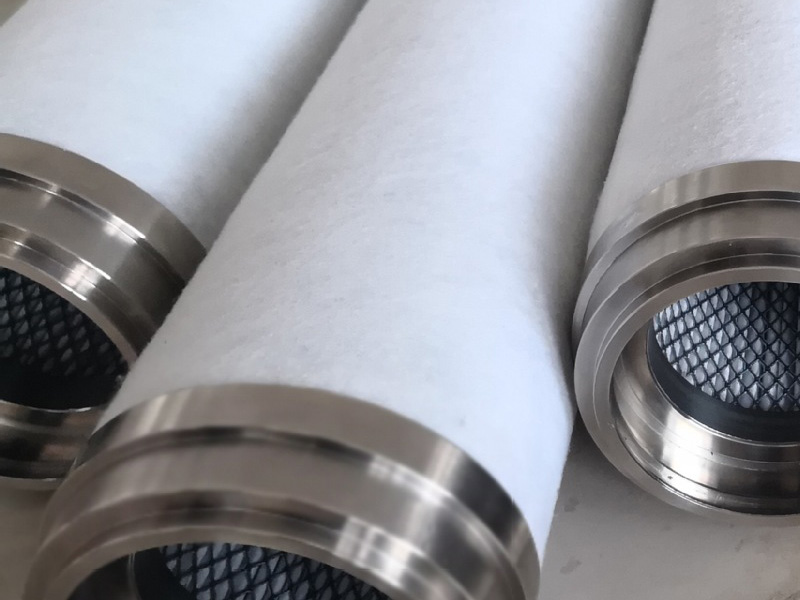

PECO Gas Coalescer Cartridges — Saturated Depth Coalescing

PECO Saturated Depth Gas Coalescer Technology

Applications & Industries

Compressed Air Filtration

Remove oil aerosols and water vapor from compressed air systems — protecting pneumatic tools, instruments, and processes.

Compressed Natural Gas (CNG)

Filtration for CNG transportation and distribution — remove liquid aerosols and particulates from natural gas streams.

Mist Elimination

Industrial mist eliminators for process gas streams — remove oil mist, water aerosols, and particulate from gas flows.

Refrigeration Systems

Coalescing filters for HVAC&R and refrigeration systems — protect compressors and ensure efficient system operation.

Air/Oil Separation

Compressor air/oil separation for industrial compressed air systems — return oil to the reservoir for reuse.

Power Generation

Turbine oil purification, fuel gas filtration, and coalescing systems for power plant and generation facilities.

Oil & Gas Industry

Liquid-liquid coalescing for petroleum refining, fuel distribution, and offshore oil & gas platform applications.

Chemical & Petrochemical

Process gas filtration, hydrocarbon coalescing, and chemical processing coalescing applications.

Mobile Hydraulic

Compressed air and hydraulic filtration for construction machinery, mobile equipment, and off-highway vehicles.

Advanced Inventory Management System

SINFT maintains a sophisticated inventory management system with dedicated personnel and advanced software, ensuring large stock of inventory items to serve ODM/OEM customers efficiently.

2,100 m² storage space: 1 finished goods warehouse and 2 raw material warehouses
Proprietary warehousing software for organized filter material management
Automatic alerts for low raw material levels, prompting immediate restocking

Strict Pre-Shipment Quality Inspection

We strive to ensure timely delivery with rigorous quality checks before shipment, guaranteeing product reliability and customer satisfaction.

100% pre-shipment inspection
Testing to international standards (ASTM, ISO)
Complete inspection reports with each shipment

Comprehensive Packaging Solutions

Standard Filter Packaging: Plastic bag + cardboard box + wooden crate
Customized outer packaging with leg heights compliant with European forklift standards
Customized packaging for special filters and OEM clients
Innovative packaging design to prevent transport damage
Laser marking on products and color-printed cardboard packaging

Your Advantages with SINFT

Over 10 years, established relationships with more than 80 suppliers
Over 300 different filter media for various applications
3D printing and drawing design capabilities
All production personnel receive regular training
Core production staff hold vocational technician certificates

Centralized Shipping & Streamlined Process

SINFT ensures efficient and accurate logistics through a centralized warehousing system. Every order undergoes scanning, packaging, and labeling at our unified distribution center, guaranteeing fast and precise delivery.

Custom Filter Solutions

From prototype to mass production, SINFT provides end-to-end filtration solutions tailored to your specific requirements. Our engineering team works closely with customers to develop custom coalescing filters for unique applications.
