What Makes SINFT Glass Fiber Filters Different
SINFT glass fiber filter media is manufactured from inert glass fiber material bonded with a stable resin, randomly formed into a multi-layer composite structure.
This structure delivers:
- Superior throughput compared to conventional fiber filters
- Excellent particle capture efficiency
- High dirt-holding capacity for extended service life
Glass fiber filters are typically used for sediment removal, coarse particulate filtration, and multi-stage process filtration, making them ideal for both pre-filtration and system protection.
Technical Specifications
SINFT Glass Fiber Filter Element Specifications
Filtration efficiency:
- Bx(c) = 1000 (ISO 16889) at 2.5, 5, 7, 12, 22 μm
- Minimum Bx = 200 (ISO 4572) at 1, 3, 6, 12, 25 μm
Collapse pressure ratings:
- From 150 PSID up to 3250 PSID
Designed for long service life under high flow and high contamination load
Industry Applications
SINFT glass fiber filter elements are suitable for a wide range of industries, including:
One filter platform, multiple industries — engineered to adapt to your system requirements.
SINFT Glass Fiber Filter Media — Trusted Material Sources
To ensure consistent quality and filtration performance, SINFT sources glass fiber filter media from reliable, long-term partner brands, with verified material traceability and batch consistency.
Our glass fiber media features:
- Stable resin bonding
- Uniform fiber distribution
- Excellent chemical compatibility
- Controlled pore structure
All incoming filter media undergo material inspection and compatibility verification before production.
Quality Control, Testing & Certification
To guarantee stable performance, SINFT glass fiber filter elements are tested in accordance with international standards:
- ISO 2941 – Collapse & Burst Resistance
- ISO 2942 – Fabrication & Integrity Test
- ISO 2943 – Material Compatibility with Fluids
- ISO 3724 – Flow Fatigue Characteristics
- ISO 3968 – Pressure Drop vs. Flow Rate
- ISO 16889 – Multi-pass Performance Testing
Comprehensive testing ensures each filter element delivers verified efficiency, mechanical stability, and operational reliability.
Filter Media Processing Capabilities
SINFT offers flexible processing for glass fiber filter elements, including:
- Single-layer or multi-layer composite structures
- Co-pleated designs for enhanced strength
- Support layer integration for high-pressure applications
- Custom pleat height and spacing
- Coreless and cored constructions
Support layers available:
- Polymer mesh
- Annealed epoxy-coated steel wire
- Stainless steel wire cloth
This flexibility allows SINFT glass fiber filters to perform reliably under high flow, high pressure, and long service cycles.

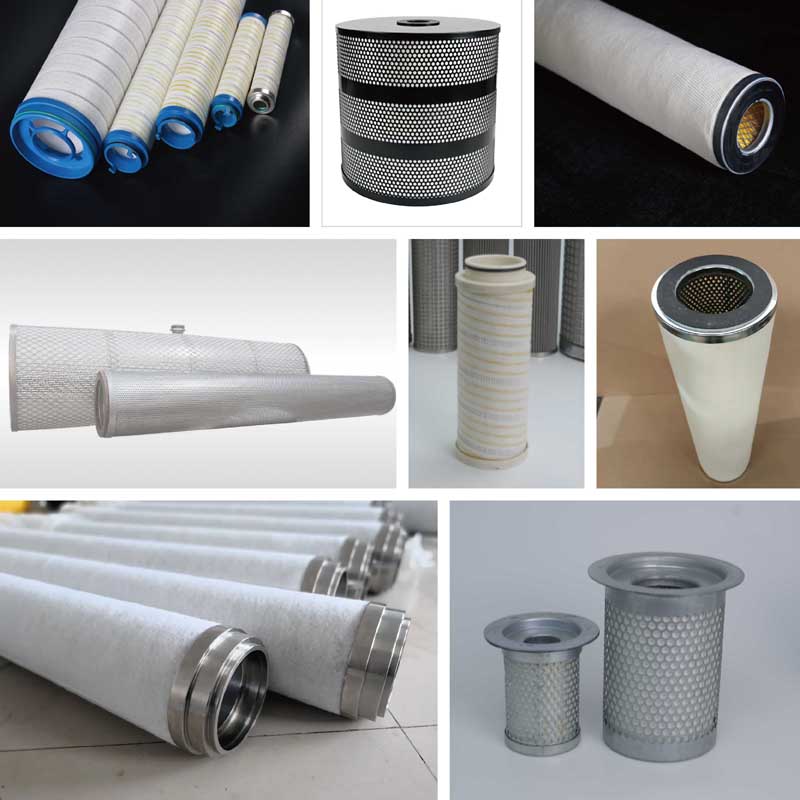

Specialty Glass Fiber Filter Configurations
SINFT glass fiber filter elements are available in multiple specialty configurations:
- Coalescing Filter Elements
- Water Removal Filter Elements
- Industrial Process Filter Elements
- Coreless Filter Elements
Each configuration is engineered to match specific contamination control and system protection needs.

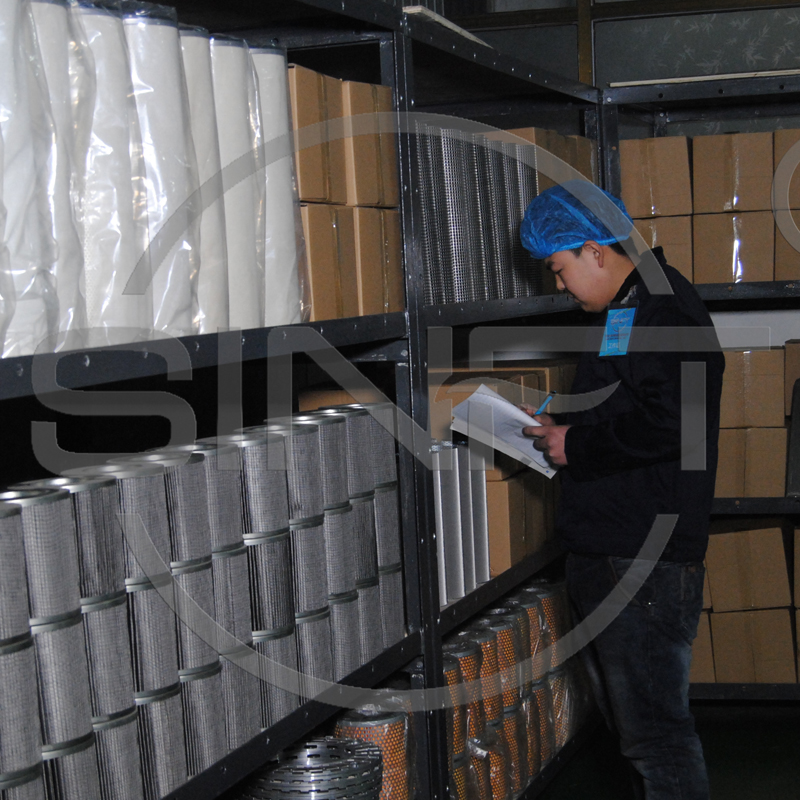

Raw Material & Finished Product Inventory
SINFT maintains stable inventory for:
- Glass fiber filter media
- Support materials
- Standard filter element models
This allows us to:
- Respond quickly to customer inquiries
- Support urgent replacement demands
- Reduce lead times for both standard and customized products
ADVANCED INVENTORY MANAGEMENT SYSTEM
SINFT maintains a sophisticated inventory management system with dedicated personnel and advanced software, ensuring a large stock of inventory items to serve ODM/OEM customers efficiently.
- 2,100 m² storage space: 1 finished goods warehouse and 2 raw material warehouses.
- Proprietary warehousing software for organized filter material management.
- Automatic alerts for low raw material levels, prompting immediate restocking by the procurement team.
SINFT Delivers Globally · Trusted Service
Reliable global shipping services ensure timely delivery of filter elements, whether for samples or bulk orders, with full traceability.
