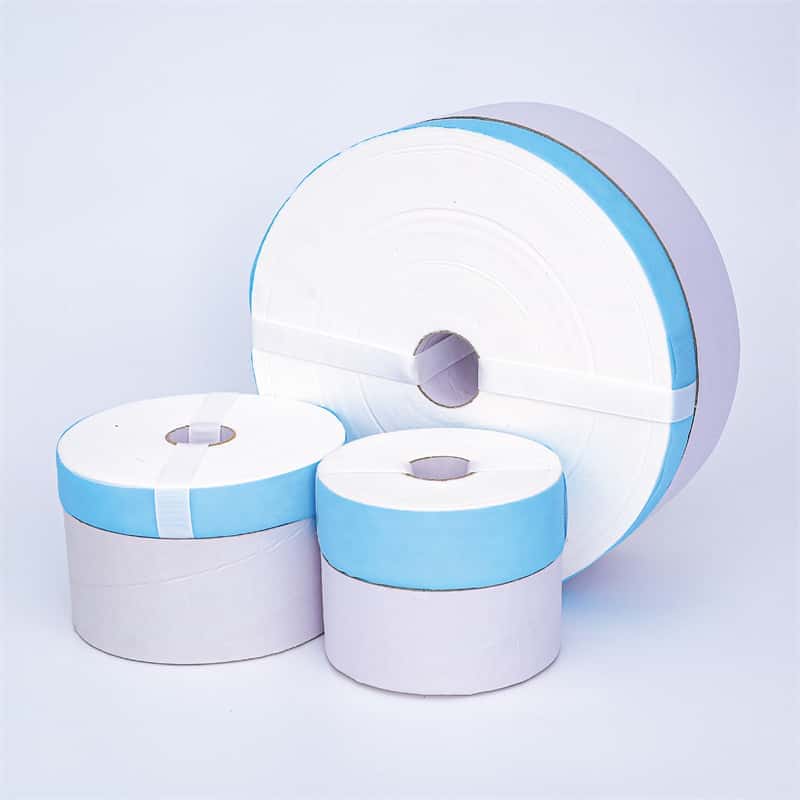

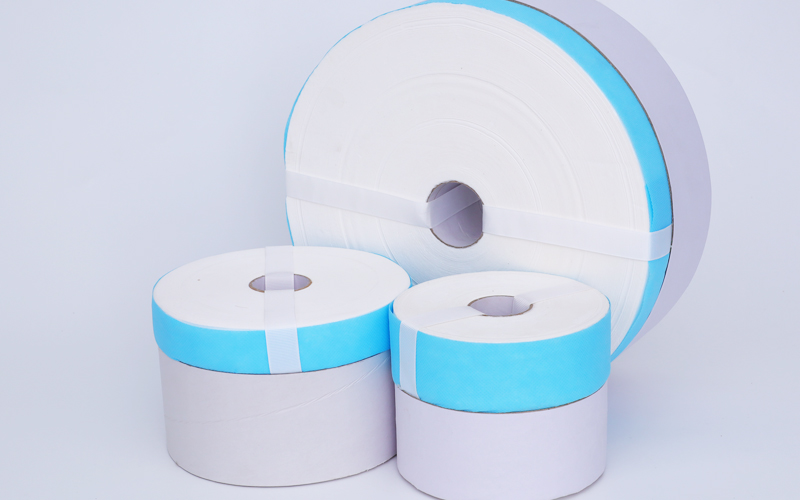

SINFT® — Triple R Filter Insert Replacement
SINFT offers alternative Triple R filter inserts utilizing deep composite materials and adsorbent deep filtration media. All products provide 100% full-size replacement with enhanced flexibility, stable supply assurance, and cost advantages.
Triple R continuous investment in R&D delivers the highest standard of efficiency in oil filtration. Protecting your investments while boosting productivity.
- 3-in-1 Absolute Oil Cleaning — Unique technology, unmatched by any filter manufacturer worldwide
- Removes solid particles, water, sludge, varnish and oxidation residues
- Multipass-tested for consistent and reproducible micron ratings
- OEM-compatible dimensions — Drop-in replacement, no modification required
This Must Be What You Care About Most
Three-Stage Filtration Concept
Compatible Replacement — Three Stages

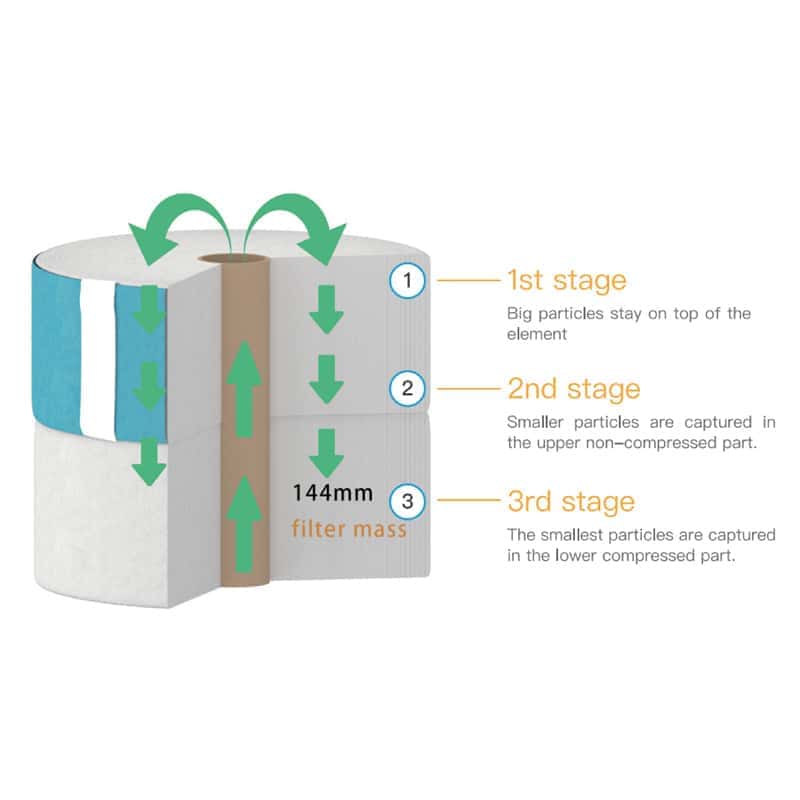

The Triple R filter insert replacement combines a special cellulose medium with an optimized multi-layer structure, creating a 114mm thick filter buildup through axial flow design.
- Stage 1: Big particles stay on top of the element
- Stage 2: Smaller particles captured in upper non-compressed part
- Stage 3: Smallest particles captured in lower compressed part
Unique 3-in-1 technology: Simultaneously removes solid particles, water, sludge, varnish and oxidation residues.
Process & Structure Improvements

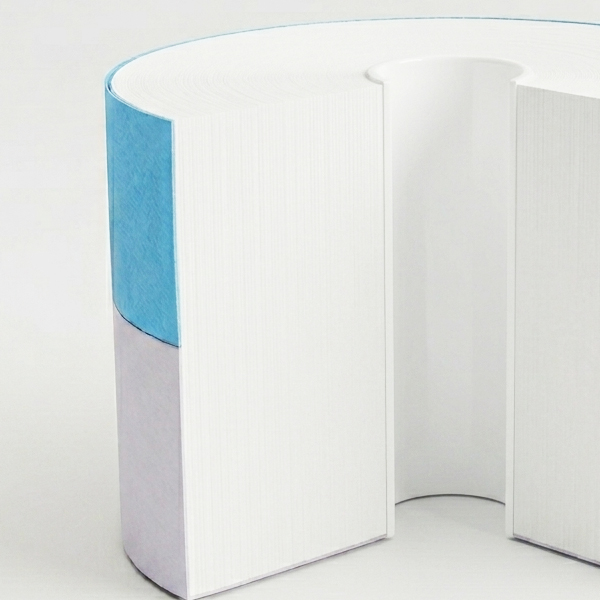

Skeleton Strength Improvement
Innovation
Enhanced skeleton design ensures structural integrity under high differential pressure and extreme operating conditions across all filter series.
| Series | Existing Issue | Customizable Process Improvement | Optimization Result |
|---|---|---|---|
| WE-100 | Media mechanical strength degradation and flow channel collapse after water saturation | Embedded improved support skeleton | Prevents center channel closure under high differential pressure, maintains structural integrity |
| D-series | Inter-stage stress compression and inhomogeneous deformation at flexible cross-sections | Upgraded inter-stage separator plate | Rigidly distributes axial hydraulic load, eliminates inter-chamber bypass and stage misalignment |
| WG-series | Coated skeleton triggering fluid electrochemical corrosion and adhesive hydrolysis | Anodized aluminum / 316 stainless steel skeleton + anti-hydrolysis curing resin | Blocks chemical erosion from extreme reactive media, ensures high chemical stability |
| WS-series | Bending yield strain and coalescence failure under high-flow high-viscosity conditions | Modified polyester fiber composite skeleton | Enhances bending stiffness under ultra-high flow rates, ensures efficient coalescent retention |

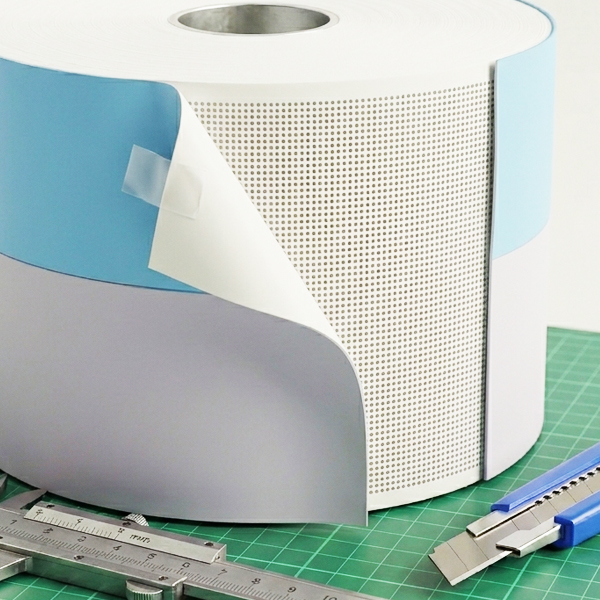

Structural Constraint Improvement
Innovation
Advanced constraint structure design locks filter media boundaries precisely, preventing media migration and ensuring stable filtration performance under high-shear conditions.
| Series | Existing Issue | Customizable Process Improvement | Optimization Result |
|---|---|---|---|
| WE-100 | Volume swelling deformation caused by radial stress release after water saturation | Optional high-tension rigid constraint outer mesh | Locks maximum outer diameter tolerance, enables smooth flexible removal and replacement |
| E / X | Paper envelope layer swelling emulsification and fiber migration under heavy loads | Optional reinforced outer mesh | Locks physical outer boundary, completely eliminates media fiber shedding under high-shear oil flow |
| V-series | Microscopic escape of adsorbed fine powder under hydraulic high-frequency pulsed loading | Optional triple-layer high-density constrained encapsulation | Blocks molecular-level powder mechanical penetration and leakage under pulsed pressure |
SINFT Depth Filtration — Why Natural Cellulose?
Only natural cellulose delivers both hydrophilicity and surface activity
Only natural cellulose possesses extremely strong hydrophilicity (water absorption) and surface activity (sludge adsorption) — this is another application of SINFT depth filtration technology.
The Secret of Durability: SINFT does not use short fibers from conventional filter paper. Instead, it uses extremely strong, specially chemically treated high-purity long needle-leaf wood fibers. After these fibers interweave, the tensile strength and oil-water soaking resistance are extremely high — the structure will not disintegrate even after years of use in lubricating oil.
How SINFT Ensures Triple R Filter Performance

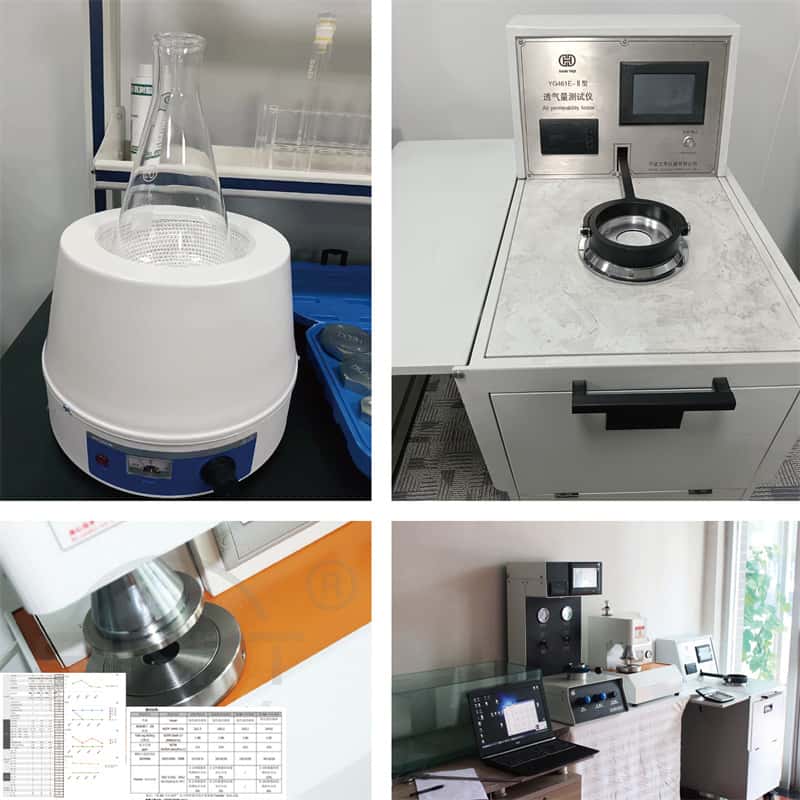

Advanced Testing Equipment
Oil quality demands extremely high requirements for filter stability and compatibility. SINFT has established a complete filter testing process with professional equipment to ensure reliable performance under demanding conditions.
- Compatibility testing rigs
- Bubble test benches
- Burst strength monitors
- Air permeability testers
- Differential pressure detection equipment
From filter media pore size, structural strength to fluid performance — all indicators are strictly tested to ensure stable filtration performance and low pressure drop under high pressure and high flow conditions.
Clean Production Environment
ISO Class 8 Cleanroom
High-precision hydraulic systems have extremely high requirements for initial cleanliness of filter elements. SINFT uses ISO Class 8 cleanrooms for high-precision hydraulic filter production and assembly — effectively reducing fiber shedding, dust and metal particle contamination risks.
- ISO Class 8 certified environment
- Low fiber shedding design
- Reduced particulate contamination
Clean production environment helps hydraulic systems reduce pollutant circulation and improve equipment operation stability and filter service life.
Three-Stage Quality Control System
From incoming materials to final shipment — every step is strictly controlled
| Stage | Content | Mechanism |
|---|---|---|
| Incoming Inspection | Raw material / filter media incoming testing | Warehouse software auto-tracking, low-level auto-alert |
| In-Process | Production process key control points | Certified operators + core technicians quality gate |
| Pre-Shipment | Every batch strictly inspected before shipment | Guarantee every product meets performance standards |

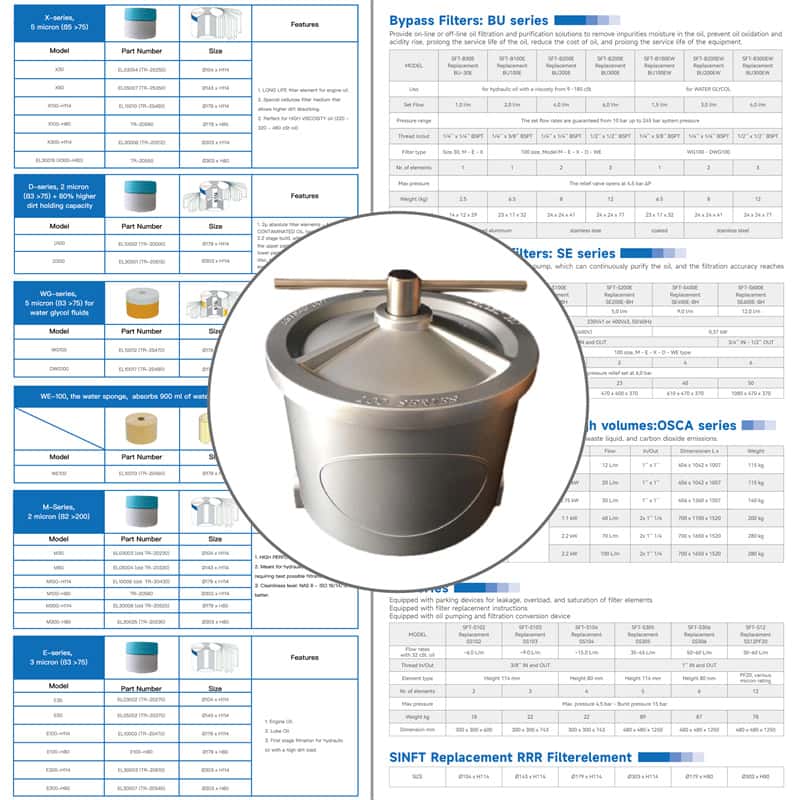

SINFT Cross Reference — Triple R Filter Insert Products
D-series — 2μm Absolute · Dual-Stage
β₂ > 75 · Dual-stage with non-woven disc separator
| SINFT Part No. | Model / OEM Ref. | Dimensions | Photo |
|---|---|---|---|
| SFT-TPFIL-D100 | D100 / TR-20000 | Ø179 × H114 |  |
| SFT-TPFIL-D300 | D300 / TR-20515 | Ø303 × H114 |  |

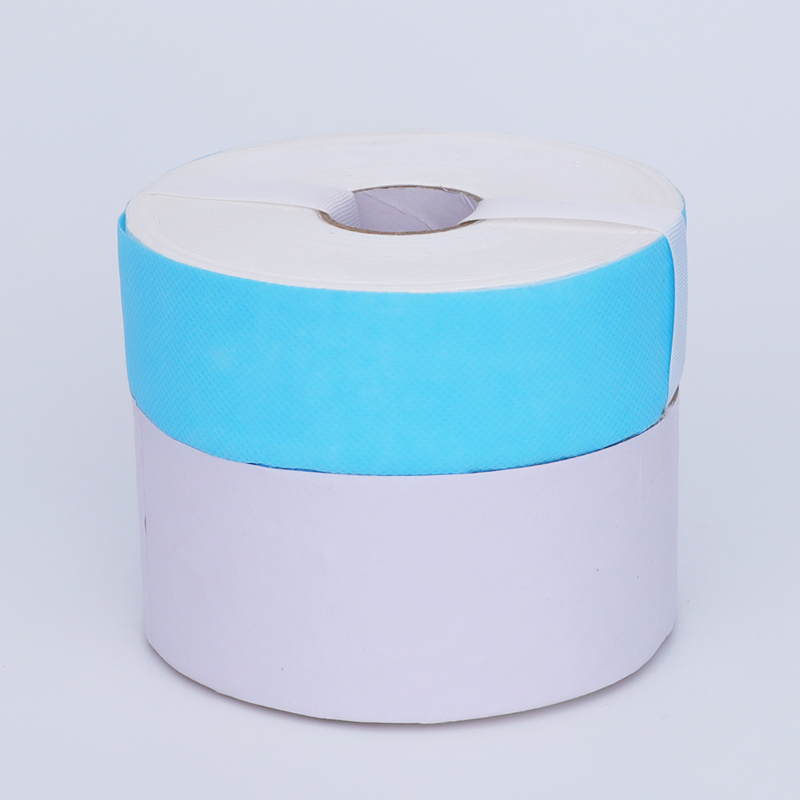

E-series — 3μm Absolute · Engine Oil
β₃ > 75 · For engine oil, lube oil, hydraulic first stage
| SINFT Part No. | Model / OEM Ref. | Dimensions | Photo |
|---|---|---|---|
| SFT-TPFIL-E30 | E30 / TR-20270 | Ø104×H114 |  |
| SFT-TPFIL-E50 | E50 / TR-20370 | Ø143×H114 |  |
| SFT-TPFIL-E100 | E100 / TR-20470 | Ø179×H114 |  |
| SFT-TPFIL-E300 | E300 / TR-20510 | Ø303×H114 |  |

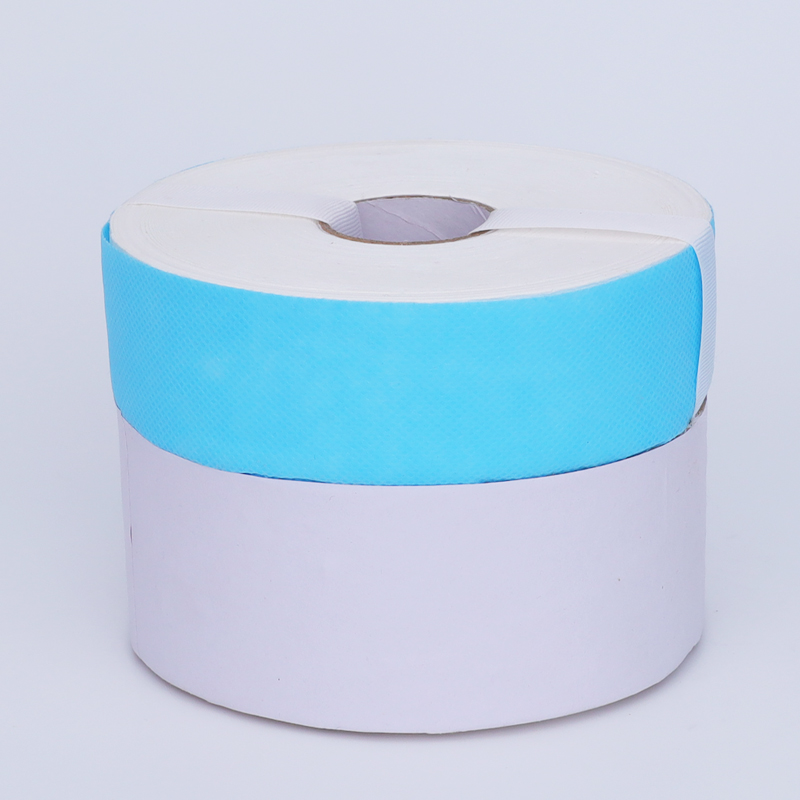

M-series — 2μm Absolute · Hydraulic Oil
β₂ > 200 · NAS 6 / ISO 16/14/12
| SINFT Part No. | Model / OEM Ref. | Dimensions | Photo |
|---|---|---|---|
| SFT-TPFIL-M30 | M30 / TR-20230 | Ø104×H114 |  |
| SFT-TPFIL-M50 | M50 / TR-20330 | Ø143×H114 |  |
| SFT-TPFIL-M100 | M100 / TR-20430 | Ø179×H114 |  |
| SFT-TPFIL-M300 | M300 / TR-20520 | Ø303×H114 |  |
WG-series — Water Glycol Fluid
10μm / 5+10μm dual-stage · Water glycol专用
| SINFT Part No. | Model / OEM Ref. | Dimensions | Photo |
|---|---|---|---|
| SFT-TPFIL-WG100 | WG100 / TR-25470 | Ø179×H114 |  |
| SFT-TPFIL-DWG100 | DWG100 / TR-25480 | Ø179×H114 |  |
WE-100 — Water Absorber
Absorbs 900ml water · Dries oil to below 80ppm
| SINFT Part No. | Model / OEM Ref. | Dimensions | Photo |
|---|---|---|---|
| SFT-TPFIL-WE100 | WE100 / TR-20450 | Ø179×H114 |  |

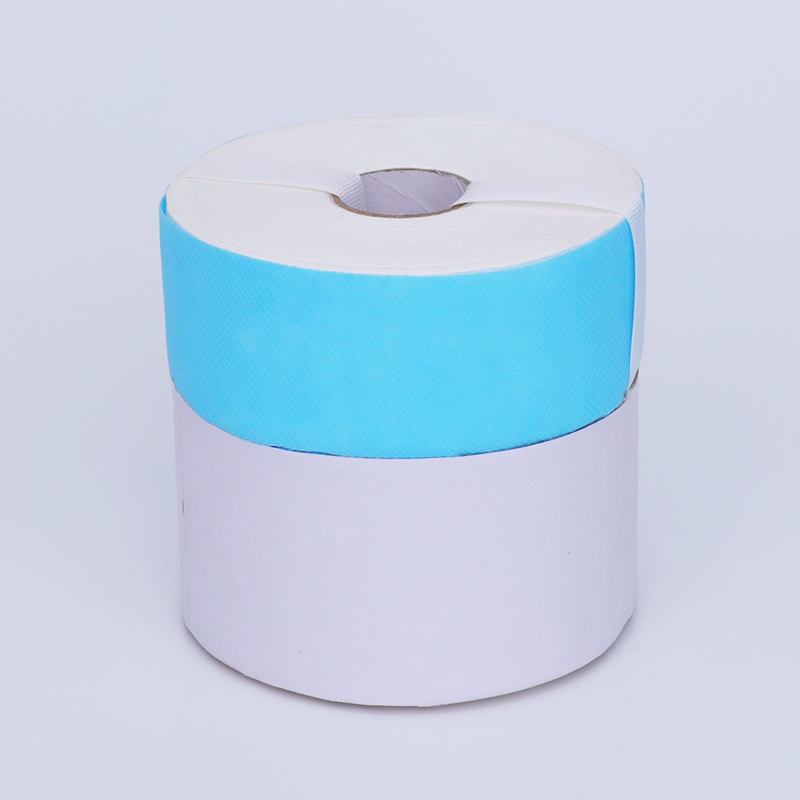

X-series — 5μm Absolute · Long Life
β₅ > 75 · High viscosity oil 220-460 cSt
| SINFT Part No. | Model / OEM Ref. | Dimensions | Photo |
|---|---|---|---|
| SFT-TPFIL-X30 | X30 / TR-25250 | Ø104×H114 |  |
| SFT-TPFIL-X50 | X50 / TR-25350 | Ø143×H114 |  |
| SFT-TPFIL-X100 | X100 / TR-25450 | Ø179×H114 |  |
| SFT-TPFIL-X300 | X300 / TR-20512 | Ø303×H114 |  |
SINFT Suction Filter Insert Replacement Series
SE-series
Metal mesh suction filter, washable and reusable
| SINFT Part No. | OEM Ref. | Dimensions |
|---|---|---|
| SFT-TPFIL-SE | TR-21461 | Ø35 × H50 |
OSCA-series
High-flow offline bypass filter
| SINFT Part No. | OEM Ref. | Dimensions |
|---|---|---|
| SFT-TPFIL-OSCA | TR-21200 | Ø112 × H151 |
LL-series
LL-housing compatible filter
| SINFT Part No. | OEM Ref. | Dimensions |
|---|---|---|
| SFT-TPFIL-LL | TR-21000 | Ø150 × H250 |
SINFT Replacement Replacement Triple R Filter Elements
For a more comprehensive product selection, please refer to our full product catalog to help you make an efficient choice:
View Full Product CatalogProduct List
Showing 1-30 of 200,000+ results
Why Choose SINFT Triple R Replacement
SINFT provides high-quality, cost-effective alternatives with stable supply and full technical support

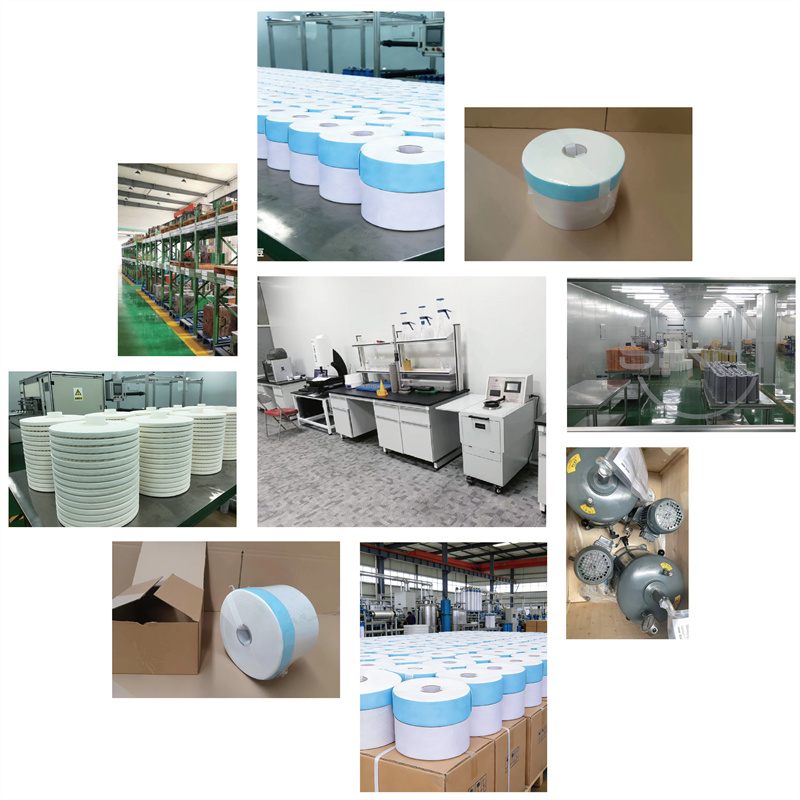

Advanced Inventory Management System
SINFT maintains a sophisticated inventory management system with dedicated personnel and advanced software, ensuring large stock of inventory items to serve ODM/OEM customers efficiently.
- 2,100 m² storage space: 1 finished goods warehouse and 2 raw material warehouses
- Proprietary warehousing software for organized filter material management
- Automatic alerts for low raw material levels, prompting immediate restocking
Strict Pre-Shipment Quality Inspection
We strive to ensure timely delivery with rigorous quality checks before shipment, guaranteeing product reliability and customer satisfaction.
- 100% pre-shipment inspection
- Testing to international standards (ASTM, ISO)
- Complete inspection reports with each shipment
Comprehensive Packaging Solutions
Standard Filter Packaging: Plastic bag + cardboard box + wooden crate
- Customized outer packaging with leg heights compliant with European forklift standards
- Innovative packaging design to prevent transport damage
Your Advantages with SINFT
Over 10 years, established relationships with more than 80 suppliers
- Over 300 different filter media for various applications
- 3D printing and drawing design capabilities
- All production personnel receive regular training
Centralized Shipping & Streamlined Process
SINFT ensures efficient and accurate logistics through a centralized warehousing system. Every order undergoes scanning, packaging, and labeling at our unified distribution center, guaranteeing fast and precise delivery.
